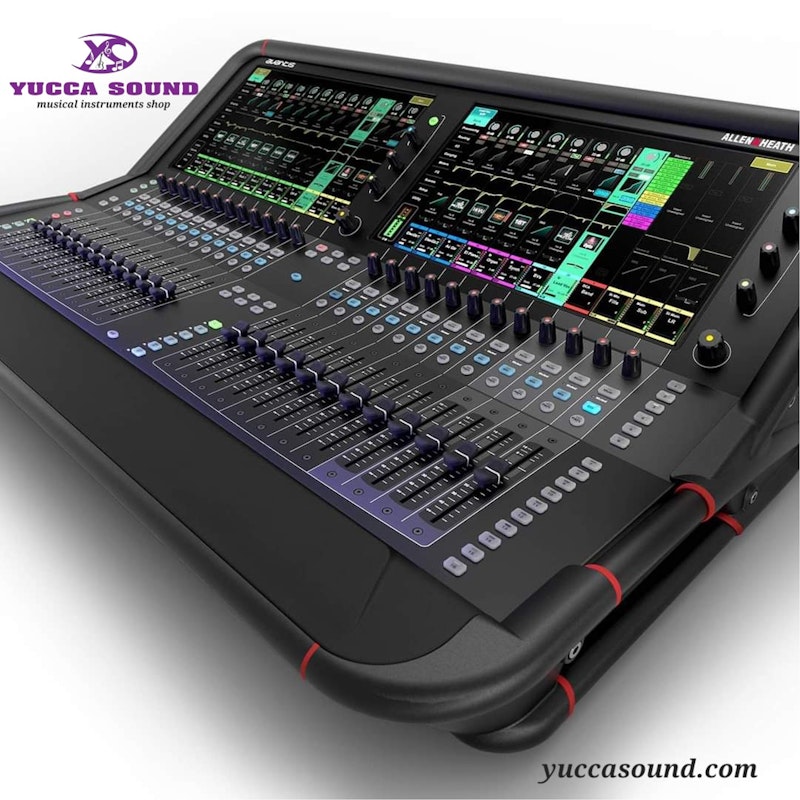

Allen & Heath AVANTIS 64 Channel Digital Mixer
The third mixer based on our 96kHz XCVI FPGA engine, Avantis puts all our next-generation technology in a 64 channel / 42 configurable bus console.
- Weight:
The power of Avantis emanates from the XCVI Core – pioneered by the Allen & Heath R&D team using next generation FPGA technology, with parallel virtual processing cores generating enough power for 88×42 (including FX returns) channels of processing at 96kHz sampling rate.
The massive power of XCVI (25 billion operations per second) allows Avantis to deliver 64 full processing inputs and 12 stereo FX returns, 42 bus with configurable mix architecture, variable bit depth for ultimate precision and noise performance, a virtually infinite mix headroom thanks to a 96bit accumulator, and class-leading latency at an ultra-low 0.7ms.
Right out of the box, Avantis is loaded with powerful processing tools that will easily meet the demands of most users and applications. Want more options? Upgrade your console with Avantis dPack to get additional dLive processing including Dyn8 (up to 16 instances), DEEP Compressors, and the Dual Stage Valve Preamp, plus more models as they’re added.
Features
96kHz 64 channel / 42 bus digital mixer
XCVI FPGA core with ultra-low latency (0.7ms)
Fully configurable mix bus architecture
Super-tough, full metal chassis
Continuity UI seamlessly connects physical and touchscreen controls for the fastest, most intuitive workflows
dPack option adds dLive processing, including 16 Dyn8 engines, plus per-channel zero-latency DEEP Compressors and Dual-Stage Valve preamp
12 RackExtra FX slots with dedicated stereo returns
16 DCAs
Dual 15.6” Full HD capacitive touchscreens with gesture control
AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones
Fully assignable layout
144 fader strips (24 faders, 6 layers) with optional dedicated master section
SLink port for connection to Remote I/O Expanders and the ME Personal Mixing System
12 analogue XLR Inputs / 12 analogue XLR Outputs
1 Stereo AES In / 2 Stereo AES Out
2 I/O Ports, both capable of 128x128 operation at 96kHz – for optional cards inc. Dante, MADI and gigaACE
User configurable rotary controls
24 assignable SoftKeys
Comprehensive metering with multi-point peak detection
USB stereo recording and playback
BNC Word Clock
